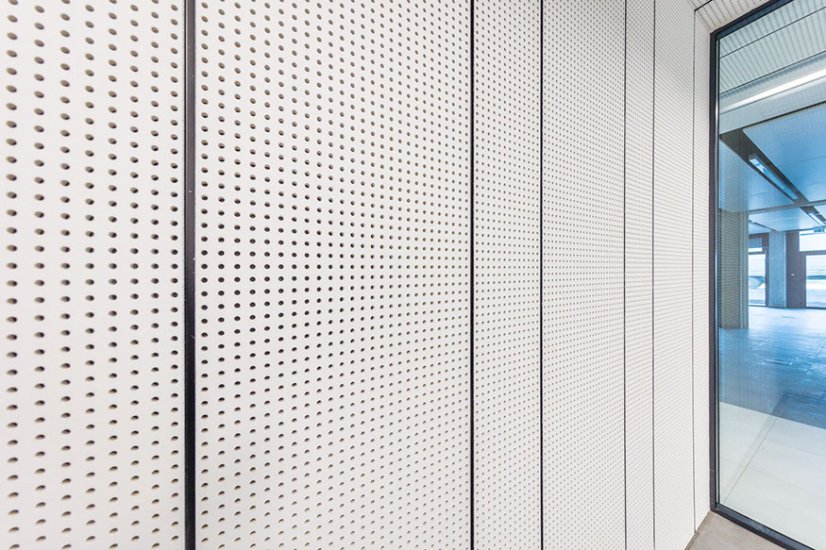

Perforated HDF 3mm board in non-flammable design on a mineral substrate is an economical panel that combines the beauty of wood with acoustic comfort. The panel is made of a perforated thin lacquered HDF board and a mineral panel in thickness from 50 to 100 mm. The advantage is the high mechanical resistance and the wooden appearance of the panel. The panel is installed in T or U profiles. Suitable wherever there is a risk of panel damage and pollution, such as school premises, offices. The surface can be washed with a damp cloth. More
Product Properties
Category / Material | wall panel / mineral, HDF |
Surface Finish | 3mm HDF coated board |
Sound Absorption |
alpha w = 0.7 |
Fire Rating | A2 S1D0 |
Mechanical Resistance | Excellent mechanical resistance |
Product Dimensions
Panel Dimensions | Width mm | Length mm |
Thickness [mm] |
|
Akufon Resident |
595 | 1200 - 2800 |
50-100 |
![]() |
Other dimensions on request |
Applications
Akufon sound-absorbing panels are used in areas where there is increased mechanical stress on the surface and where aesthetic requirements for panels are not high. Its price compared to traditional wooden panels is advantageous. Its acoustic and aesthetic properties make it suitable for spaces where speech attenuation is needed, such as cabins, industrial spaces, sports halls, offices, or combined with other types of panels. Not suitable for damp environments.
Akufon Resident Wood Panel Finish
- Standard finish - 50mm thick HDF panel laminated on a mineral board of the above dimensions, perforated edges of the panel treated with spray.
- The panel surface finish is HDF lacquer. Colors available: white, gray, beech, oak, cherry, and maple. For atypical surfaces, options are available from HDF manufacturer catalogs.
- Panels are installed in visible T or U profiles in white or black. Profile design can be enhanced with wood veneer.
![](https://obifon.s22.cdn-upgates.com/8/863bd94e3a9ad0-asdx.jpg)
Perforated gray HDF on Resident panel
![](https://obifon.s22.cdn-upgates.com/v/v63bd94e42b828-brezno.jpg)
Brezno cultural center
Acoustic Properties
![]() |
d. - insulation thickness |
hr. - total thickness |
Acoustic properties for type M perforation and 28% perforation. Values depend on panel thickness and insulation. The blue curve is measured, the other curves are calculated.
Name | 63Hz | 125Hz | 250Hz | 500Hz | 1000Hz | 2000Hz | 4000Hz | αw | NRC |
hr.50mm, d. 20mm | 0.19 | 0.32 | 0.77 | 0.96 | 0.97 | 0.99 | 0.89 | 0.8 | 0.8 |
Use in: | Interiéry |
---|---|
Core material | Minerálne vlákno - nehorľavé, Drevo |
A problem | Noise/echo in the room |
Designed for: | Schools, kindergartens, Offices, Industry, Sports fields |
Montáž:
Montáž panelov Akufon Resident je rovnaká ako u panelov Industry alebo Modular Resident a spočíva v uchytení T profilov na stenu, pod ktorými je fixovaný panel Akufon.
Montáž panelov na stenu
Rozmeriame a upevníme stenové závesy. Otvory a obvody stien orámujeme U profilmi. Vkladáme panely medzi T profily, ktoré upevňujeme o stenu zatlačením do stenových závesov. Esteticky krajšie sú čierne úzke T profily o šírke 15mm resp. profily so samolepkou v imitácii dreva.
![]() |
Upevnenie stenového závesu |
![]() |
Upevnenie obvodových U profilov |
![]() |
schéma upevnenia T profilov do závesu |
![]() |
schéma upevnenia T profilov do závesu |
![]() |
zasunutie panelu a T profilu do závesu |
![]() |
upevňovanie U profilov o podlahu alebo stenu |
![]() |
Pohľad spredu na stenu s panelmi Akufon Resident |
Technické vlastnosti:
Reakcia na oheň |
Panely Akufon Resident sú výrábané z drevenej HDF a pohltivého jadra. Horľavosť: Materiál je v triede horľavosti C2. |
Odolnosť voči vlhku |
Panely neodolávajú vzdušnej vlhkosti. Pri vyšších hodnotách vlhkosti vzduchu ako 65% môže dôjsť k deformácií panelov |
Mechanické vlastnosti |
Panely odolávajú mechanickému zaťaženiu. |
Hygiena |
Povrch panelov nie je umývateľný vodou. |
Hmotnosť |
5 kg /m2 pri hr. 50mm |
Prístupnosť |
Panely sú odnímateľné s prístupom do priestoru za nimi. |
Čistenie |
Čistenie mäkkým kartáčom a vysávačom. |
